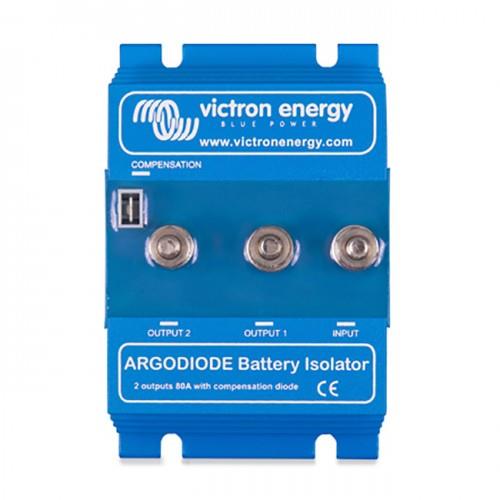

Victron Energy Argodiode 80-2AC Two Batteries 80A – ARG080201000R

£52.20

SKU: ARG080201000R Category:

Description

Diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.



The Argo Battery Isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.



Please see Victron Energy’s ‘Energy Unlimited’ or ask for specialist advice when installing a diode isolator. Simply inserting the isolator in the cabling between the alternator and the batteries will slightly reduce charge voltage. The result can be that batteries are not charged to the full 100% and age prematurely.



Alternator energize input

Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.

Additional information

Weight
0.6 kg
Dimensions
230 × 90 × 60 cm
Specification

Country of Manufacture
India

Dimensions
H60 x W120 x D90mm

Manufacturer Part Number
ARG080201000R

Weight (kg)
0.6

Brand
Victron Energy

Compensation diode & Energize Connection
6.3mm Faston

Connection
M6 Studs

Number Of Batteries
2

Maximum Alternator Current (A)
80

Maximum Charge Current (A)
80

Warranty
5 Years
