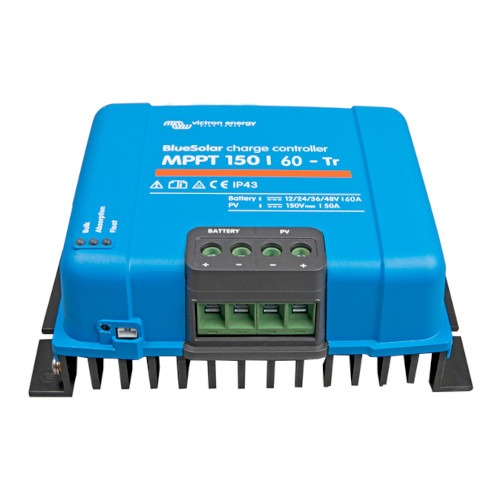

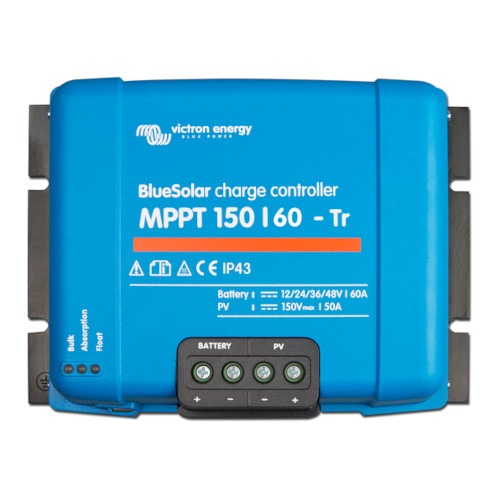

Victron Energy BlueSolar MPPT 150/60 Tr – SCC010060200

£309.00

SKU: SCC010060200 Category:

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.



Features of the BlueSolar MPPT 150/60-Tr

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the  GlobalLink 520.



Flexible Charge Algorithm

Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.



Extensive Electronic Protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.



Internal Temperature Sensor

Compensates absorption and float charge voltage for temperature.



Using the VE.Directto Bluetooth Smart dongle with the BlueSolar MPPT 150/60-Tr will allow you to see your MPPT information on iOS and Android devices, using the VictronConnect App. View information wirelessly such as battery status and solar panel power, plus other useful data.



Not sure what size charge controller you need? Why not check out the MPPT sizing calculator.

Additional information

Weight
3 kg
Dimensions
250 × 95 × 185 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
SCC010060200

gtin
8719076025474

Voltage
12/24/48V

Rated Charge Current
60A

Nominal PV Power, 12V
860W

Max. PV Short Circuit Current
50A

Max. PV Open Circuit Voltage
150V absolute maximum coldest conditions 145V start-up and operating maximum

Protection Category
IP43 (electronic components), IP22 (connection area)

Efficiency
98%

Bluetooth Enabled
No

Dimensions
H185 x W250 x D95mm

Weight
3Kg

Warranty
5 Years

Country of Manufacture
India
