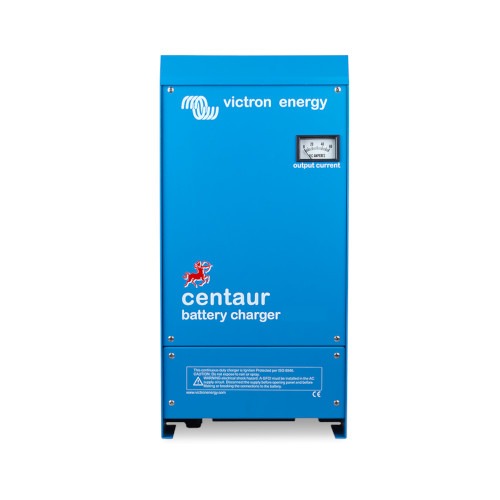

Victron Energy Centaur Charger 24/40 (3) – CCH024040000

£625.00

SKU: CCH024040000 Category:

Description

The Centaur charger 24/40 features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur charger range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.



Features of the Centaur Charger 24/40

Quality without compromise

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.



Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.

The chargers also accept a 90-400 V DC supply.



Three outputs that each can supply the full output current

The Centaur charger has three isolated outputs to simultaneously charge 3 battery banks. Each output is capable to supply the full rated current.



Three-stage charging, with temperature compensation

The Centaur 24/40 Charger charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.



Learn more about batteries and battery charging
To learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to Electricity on Board.



Want to improve battery charging? Why not take a look at the Victron Energy Battery Sense which measures voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided – guaranteeing the correct charge-voltage.

Additional information

Weight
12 kg
Dimensions
255 × 130 × 505 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
CCH024040000

gtin
8719076021568

Voltage
24V

Charge Current
40A

Input Voltage
90-265V

Number of Outputs
3

Protection Category
IP20

Bluetooth Enabled
No

Dimensions
H505 x W255 x D130mm

Weight
12Kg

Warranty
5 Years

Country of Manufacture
Malaysia
