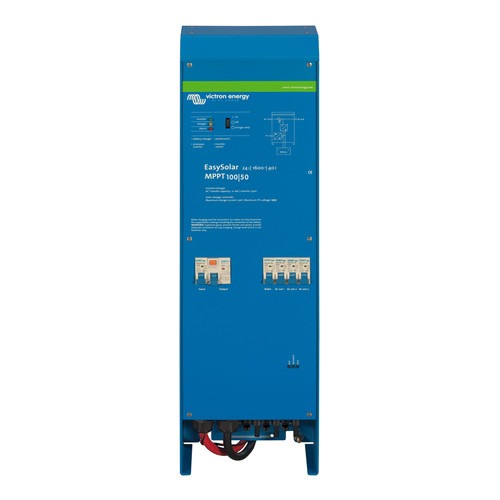

Victron Energy EasySolar 24/1600/40-16 230V MPPT 100/50 – CEP241621010

£1,119.50

SKU: CEP241621010 Category:

Description

The EasySolar 24/1600-40-16 is a specialist controller which combines an MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.



Features of the EasySolar 24/1600-40-16

All-in-one solar power solution
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.



The solar charge controller: Blue Solar MPPT 100/50

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.



PowerAssist

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.



Control over system

Want to have perfect control over your system from wherever you are whilst using your EasySolar 24/1600, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, an MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.



Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50



The MK3-USB allows the EasySolar to connect to a computer for configuration and firmware updates.



Looking to go off grid?

Our Lithium battery range can support all your off grid needs

A huge advantage to lithium technology is the life cycle rating which far surpasses alternative technologies. This specific item has 7000 charge and discharge cycles at a depth of 50%



Features

  • Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature
  • Free of maintenance
  • Internal cell balancing
  • Lighter weight: About 40% -50% of the weight of a comparable lead acid battery
  • Can be charged using most standard lead-acid charges (set)
  • Wider temperature range:-20°C-60°C
  • Support for Series application expansion (up to 51.2V) and two in parallel

Additional information

Weight
15 kg
Dimensions
214 × 110 × 745 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
CEP241621010

gtin
8719076021605

Voltage
24V

Cont. Output Power at 25°C
1600VA

Peak Power
3000W

Output AC Voltage
230V

Transfer Switch
16A

Charge Current House Battery
70A

Charge Current Starter Battery
4A

Protection Category
IP21

Efficiency
98%

Bluetooth Enabled
No

Dimensions
H745 x W214 x D110mm

Weight
15Kg

Warranty
5 Years

Country of Manufacture
China
