Victron Energy EasySolar-II 48/3000/35-32 MPPT 250/70 GX – PMP482307010

£1,624.50

SKU: PMP482307010 Category:

Description

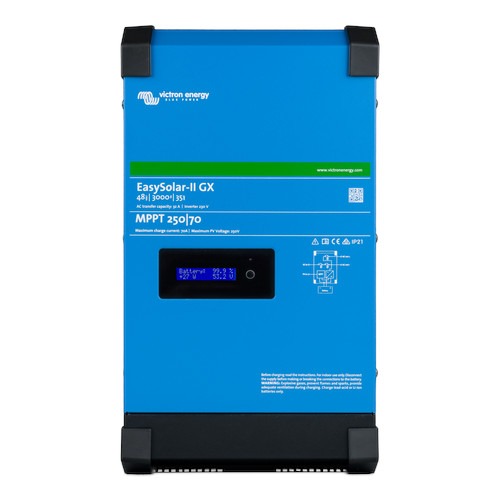

The EasySolar-II 48/3000 GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.



Features of the EasySolar-II 48/3000 GX

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

  • A MultiPlus-II inverter/charger
  • A SmartSolar MPPT -Tr solar charge controller
  • A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.



Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters.

The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

In addition, Wi-Fi can be used to set up the system and to change settings.



Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.

The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.



GX device

The integrated GX device on the EasySolar-II includes:

  • A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
  • A USB port
  • An Ethernet port
  • A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.



Control over system

Want to have perfect control over your system from wherever you are whilst using your EasySolar-II 48/3000 GX, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.



Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50



The MK3-USB allows the EasySolar-II to connect to a computer for configuration and firmware updates.

Additional information

Weight
26 kg
Dimensions
268 × 237 × 499 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
PMP482307010

gtin
8719076045786

Voltage
48V

Cont. Output Power at 25°C
3000VA

Peak Power
5500W

Output AC Voltage
230V

Transfer Switch
32A

Max. AC Input Current
32A

Max. Battery Charge Current
32A

Protection Category
IP21

Efficiency
99%

Bluetooth Compatible
Yes

Dimensions
H499 x W268 x D237mm

Weight
26Kg

Warranty
5 Years

Country of Manufacture
India
