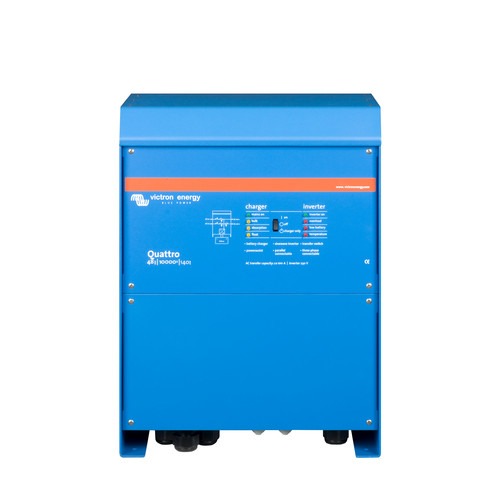

Victron Energy Quattro 48/10000/140-100/100 230V – QUA481030010

£3,049.50

SKU: QUA481030010 Category:

Description

Similar to the MultiPlus, the Quattro 48/10000/140-100 is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.



Features of the Quattro 48/10000-140-100

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.



Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.



Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.



Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…



Want to have perfect control over your system from wherever you are whilst using your Quattro 48/10000, why not have a look at the Cerbo GX Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.



Watch the new video that explains all there is to know about installing the new Cerbo GX & GX Touch 50

Additional information

Weight
51 kg
Dimensions
350 × 280 × 470 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
QUA481030010

gtin
8719076024200

Voltage
48V

Cont. Output Power at 25°C
10000VA

Peak Power
20000W

Output AC Voltage
230V

Transfer Switch
Yes

Charge Current House Battery
140A

Protection Category
IP21

Efficiency
96%

Bluetooth Compatible
No

Dimensions
H470 x W350 x D280mm

Weight
51Kg

Warranty
5 Years

Country of Manufacture
India
