Victron Energy Skylla-TG 48/50(1) 230V – SDTG4800501

£1,442.00

SKU: SDTG4800501 Category:

Description

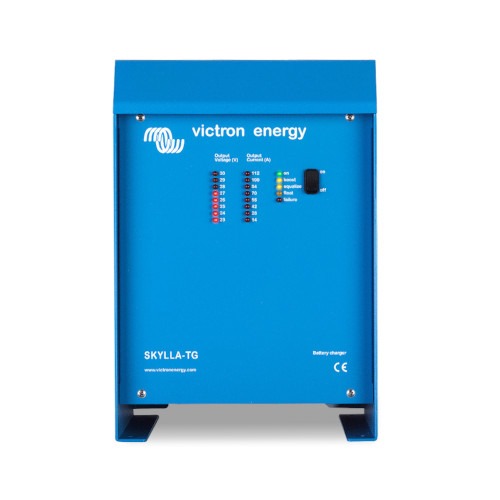

The Victron Energy Skylla-TG 48/50 has one full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.



Features of the Skylla-TG 48/50

Perfect chargers for any type of battery
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.



Controlled charging
Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.



Use of TG Chargers as a power supply
As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available.



To increase battery life: temperature compensation
Every Skylla-TG 48/50 Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.



Battery voltage sense
In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.



Learn more about batteries and battery charging

To learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to Electricity on Board.



The Skylla Control can be used with the Skylla-TG 48/50 and allows you to alter the charge current and see the system status.

Want to improve battery charging? Why not take a look at the Victron Energy Battery Sense which measures voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided – guaranteeing the correct charge-voltage.

Additional information

Weight
10 kg
Dimensions
250 × 257 × 365 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
SDTG4800501

gtin
8719076025818

Voltage
48V

Charge Current
50A

Input Voltage
230V

Number of Outputs
1

Protection Category
IP21

Bluetooth Enabled
No

Dimensions
H365 x W250 x D257mm

Weight
10Kg

Warranty
5 Years

Country of Manufacture
Malaysia
