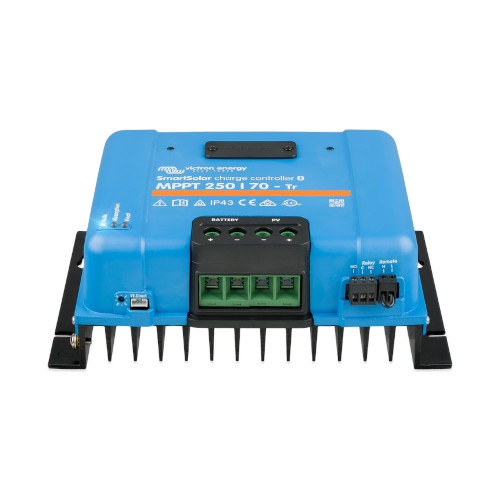

Victron Energy SmartSolar MPPT 250/70-Tr – SCC125070221

£309.00

SKU: SCC125070221 Category:

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The SmartSolar MPPT 250/70-Tr maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. The charge controller can operate with a battery voltage as low as 0 Volts, providing the cells are not permanently sulphated or otherwise damaged.



Features of the SmartSolar MPPT 250/70-Tr

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control

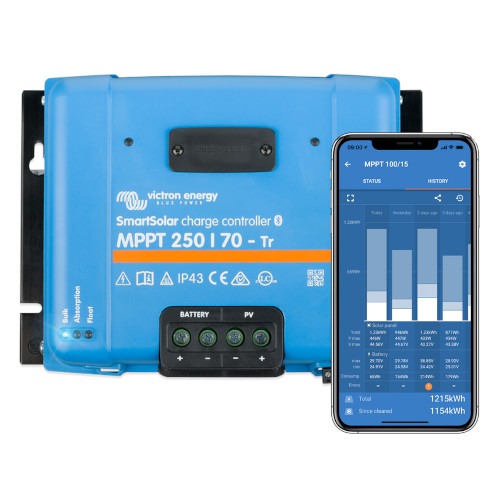

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.



Optional SmartSolar Control Display

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.



Extensive Electronic Protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.



Not sure what size charge controller you need? Why not check out the MPPT sizing calculator.

Additional information

Weight
3 kg
Dimensions
250 × 95 × 185 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
SCC125070221

gtin
8719076050865

Voltage
12/24/48V

Rated Charge Current
70A

Nominal PV Power, 12V
1000W

Max. PV Short Circuit Current
35A

Max. PV Open Circuit Voltage
250V absolute maximum coldest conditions 245V start-up and operating maximum

Protection Category
IP43 (electronic components), IP22 (connection area)

Efficiency
99%

Bluetooth Enabled
Yes

Dimensions
H185 x W250 x D95mm

Weight
3Kg

Warranty
5 Years

Country of Manufacture
Malaysia
