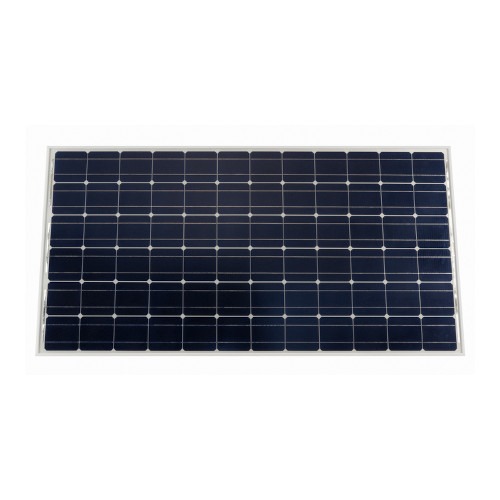

Victron Energy Solar Panel 20V 305W Mono series 4b – SPM043052002

£194.00

SKU: SPM043052002 Category:

Description

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multifunctional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with PV-ST01 connectors.

Additional information

Weight
19 kg
Dimensions
1658 × 1002 × 35 cm
Specification

Brand
Victron Energy

Manufacturer Part Number
SPM043052002

gtin
8719076057772

Voltage
20V

Nominal Power
305W

Cell Type
Monocrystalline

Number of Cells in Series
72

Maximum System Voltage
1000V

Dimensions
L1658 x W1002 x D35mm

Weight
19Kg

Warranty
5 Years

Country of Manufacture
China
