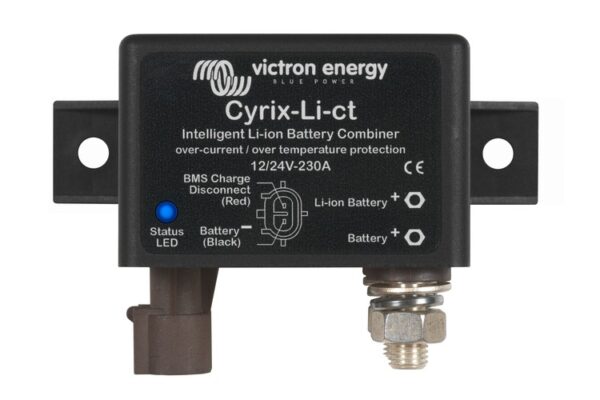

Victron Energy Cyrix-Li-ct/Li-ion Battery Combiner

£169.13

SKU: CYR010230412 Category: Tags: ,

Description

The Victron Energy Cyrix-Li-ct/Li-ion Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
The functionality of the Victron Energy Cyrix-Li-ct/Li-ion Battery Combiner is analogous to the Cyrix-ct.
The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFe-Po4 Battery
  • if the charge disconnect output of the VE.Bus BMS is high, and
  • if it senses 13,4 V (resp. 26,8 V) or more on one of its power terminals
The Cyrix will disengage immediately:
  • when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
  • when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.
For more information on the Victron combiner please click here

Additional information

Weight
0.27 kg
Dimensions
100 × 50 × 65 cm
Specification

Protection Category
IP54

Country of Manufacture
Malaysia

Manufacturer Part Number
CYR010230412

Weight (kg)
0.27

Dimensions
H65 x W100 x D50mm

Brand
Victron Energy

LED Status Indication
Yes

Control Cable Included (Length 1 m)
Yes

Current Consumption When Open
4 mA

Continuous current & Breaking capacity at 12V or 24V
230A

Voltage
12/24

Warranty
5 Years
